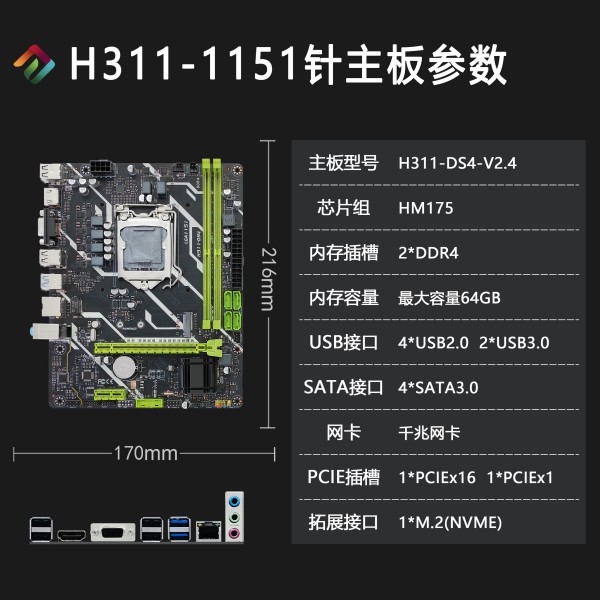

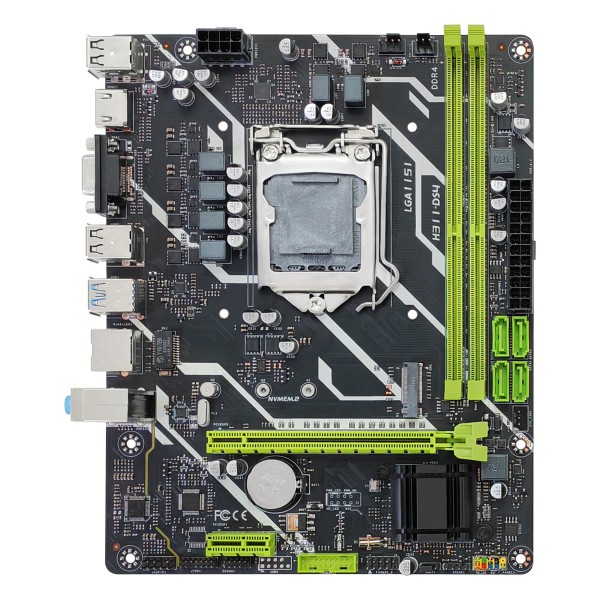

Motherboard chip

HM175

CPU

Intel 6th, 7th, 8th and 9th generation CPU

For example: I3-6100, I5-7400, I5-8500, I3-9100, G5400, G3930, etc.

memory

2*DDR4 DIMM, supporting 2133/2400/2666MHz(MAX), and the maximum single slot support is 32G.

Cunzhu

1*M.2 slot (NVME protocol); 4*SATA 3.0 interface

Display interface

1*HDMI1.4，1*VGA

network

1*RJ45 interface

Network card chip

Realtek gigabit network card chip

PS/2

/

TPM

1 2*7Pin pin (supporting MSI 14PIN TPM module)

audio frequency

1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

Usb interface

IO interface: 2*USB3.0, 4*USB2.0;

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)

PCIE

1*PCIE X16 3.0 slot; 1*PCIE X1 3.0 slot

Functional pin

1*FPANEL panel pin; 1*4Pin CPU fan; 2*3Pin SYS fan, 1*4Pin buzzer pin, 1*DEBUG pin.

Power input

24Pin+8Pin ATX power socket

product size

170 x 216mm 4-layer PCB
